Key Features & Benefits
Compact Design
Low profile cabinet blends seamlessly with residential landscaping.
Tamper Resistant
Meets ANSI C57.12.28 enclosure integrity standards for public safety.
High Efficiency
Optimized core design reduces no-load losses and operating costs.
Technical Specifications
Our single phase pad mounted transformers are available in loop feed or radial feed configurations, designed to meet the rigorous demands of modern distribution networks.
| kVA Rating | 10 - 167 kVA |
| High Voltage | Up to 34.5 kV (150 kV BIL) |
| Low Voltage | 120/240 V, 240/480 V |
| Frequency | 50 Hz / 60 Hz |
| Cooling Class | ONAN (Mineral Oil or FR3) |
| Standard | ANSI/IEEE C57.12.38 |
| Winding Material | Copper or Aluminum |

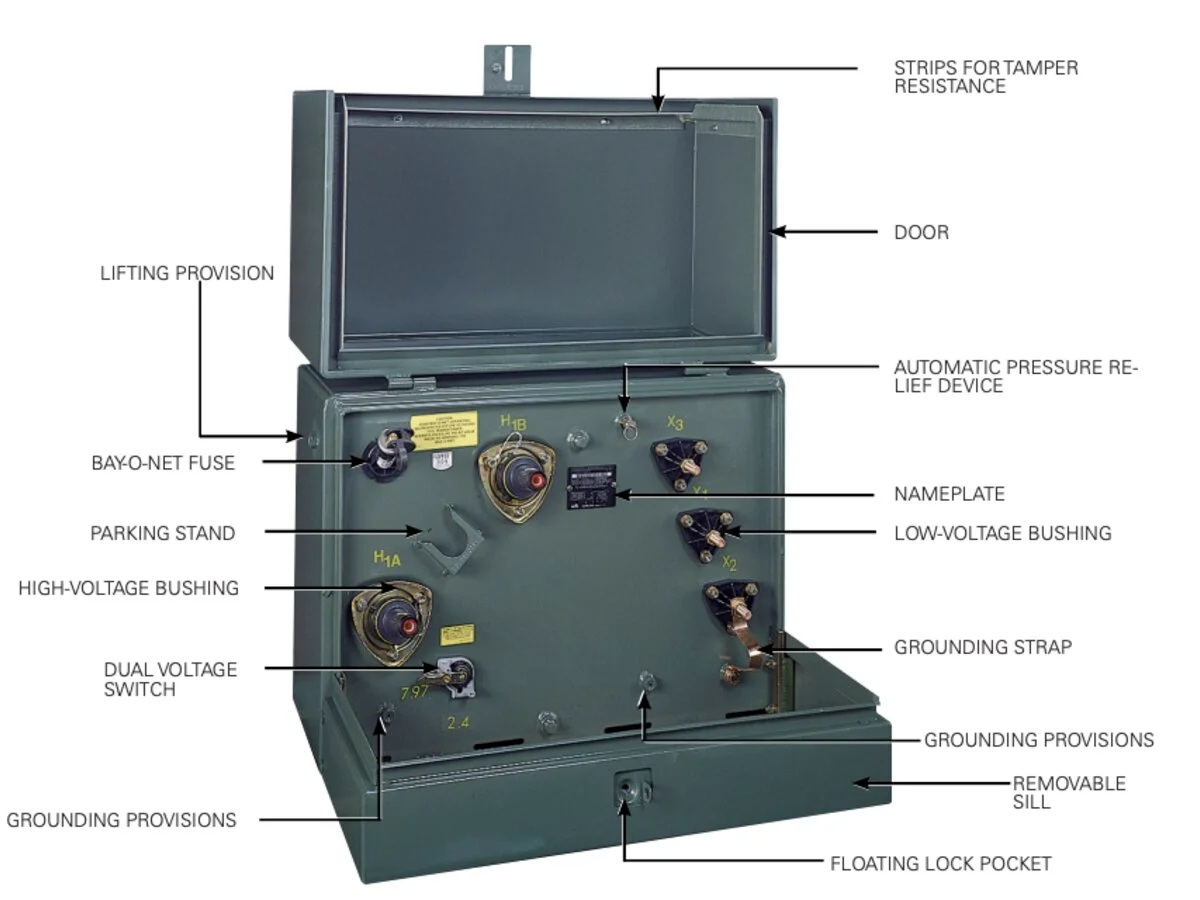

Standard Accessories
- Bay-O-Net fuse assembly
- Pressure relief valve
- Oil level gauge
- Temperature gauge
- Drain valve with sampler
- Grounding pads (tank and HV/LV compartments)
- Parking stands for elbow connectors
Documentation
Full technical drawings and type test reports available upon request.
